Arduino이용 Step-Motor 제어

//////////////가속도로 정회전


int in_A = 8;

int Speed = 10;
int i, j, cycle;

int step_table[4][4] = {
  {1, 0, 0, 1}, {1, 1, 0, 0}, {0, 1, 1, 0}, {0, 0, 1, 1}
};

void setup()
{
  for (i = 0; i < 4; i++)
    pinMode(in_A + i, OUTPUT);
}

void clockwise(int Speed)
{
  for (j = 0; j < 4; j++)
  {
    for (i = 0; i < 4; i++)
      digitalWrite(in_A + i, step_table[j][i]);
    delay(Speed);
  }
}

void loop()
{
  for (cycle = 0; cycle < 50; cycle++) //1바퀴
  {
    clockwise(60 - cycle); //가속
  }
  for (cycle = 0; cycle < 150; cycle++) //3바퀴
  {
    clockwise(10); //100Hz
  }
  for (cycle = 0; cycle < 50; cycle++) //1바퀴
  {
    clockwise(11 + cycle); //감속
  }
  delay(1000);
}



///////////////포텐시오미터값으로 속도제어


int in_A = 8;

int Speed = 10;
int i, j, cycle;

int step_table[4][4] = {
  {1, 0, 0, 1}, {1, 1, 0, 0}, {0, 1, 1, 0}, {0, 0, 1, 1}
};

void setup()
{
  for (i = 0; i < 4; i++)
    pinMode(in_A + i, OUTPUT);
}

void CW(int Speed)
{
  for (j = 0; j < 4; j++)
  {
    for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[j][i]);
    delay(Speed);
  }
}

void CCW(int Speed)
{
  for (j = 0; j < 4; j++)
  {
    for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[3-j][i]);
    delay(Speed);
  }
}

void loop()
{
  for (cycle = 0; cycle < 150; cycle++) //3정회전
  {
    int Speed  = analogRead(A0);
    Speed = map(Speed, 0, 1023, 10, 100);
    CW(Speed);
  }

  for (cycle = 0; cycle < 100; cycle++) //2역회전
  {
    int Speed  = analogRead(A0);
    Speed = map(Speed, 0, 1023, 10, 100);
    CCW(Speed);
  }
}



//////////////////HALF-STEP방식-1


int in_A = 8;

int Speed = 100;
int i;

int step_table[8][4] = {
  {1, 1, 0, 0},
  {0, 1, 0, 0},
  {0, 1, 1, 0},
  {0, 0, 1, 0},
  {0, 0, 1, 1},
  {0, 0, 0, 1},
  {1, 0, 0, 1},
  {1, 0, 0, 0},
};

void setup()
{
  for (i = 0; i < 4; i++)
    pinMode(in_A + i, OUTPUT);
}


void loop()
{
  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[0][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[1][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[2][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[3][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[4][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[5][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[6][i]);
  delay(Speed);

  for (i = 0; i < 4; i++)
    digitalWrite(in_A + i, step_table[7][i]);
  delay(Speed);
}



//////////////////HALF-STEP방식-2



int in_A = 8;

int Speed = 100;
int i, j;

int step_table[8][4] = {
  {1, 1, 0, 0},
  {0, 1, 0, 0},
  {0, 1, 1, 0},
  {0, 0, 1, 0},
  {0, 0, 1, 1},
  {0, 0, 0, 1},
  {1, 0, 0, 1},
  {1, 0, 0, 0},
};

void setup()
{
  for (i = 0; i < 4; i++)
    pinMode(in_A + i, OUTPUT);
}


void loop()
{
  for (j = 0; j < 8; j++)
  {
    for (i = 0; i < 4; i++)
      digitalWrite(in_A + i, step_table[j][i]);
    delay(Speed);
  }
}


//////////////////HALF-STEP방식-3



int in_A = 8;

int Speed = 10;
int i, j, cycle;

int step_table[8][4] = {
  {1, 1, 0, 0},
  {0, 1, 0, 0},
  {0, 1, 1, 0},
  {0, 0, 1, 0},
  {0, 0, 1, 1},
  {0, 0, 0, 1},
  {1, 0, 0, 1},
  {1, 0, 0, 0},
};

void setup()
{
  for (i = 0; i < 4; i++)
    pinMode(in_A + i, OUTPUT);
}

void loop()
{
  for (cycle = 0; cycle < 50; cycle++)
  {
    for (j = 0; j < 8; j++)
    {
      for (i = 0; i < 4; i++)
        digitalWrite(in_A + i, step_table[j][i]);
      delay(Speed);
    }
  }
  delay(2000);
}



/////////SW1회ON-CW6회전 및 FND카운트, SW2회ON-CCW4회전 및 FND카운트


int A = 2;
int preSW = 0;
int STATUS = 0;
int step_table[4][4] = {
  {1, 0, 0, 1}, {1, 1, 0, 0}, {0, 1, 1, 0}, {0, 0, 1, 1}
};
int pin = 6;
int table[16][7] = {
    {1,1,1,1,1,1,0},  //0
    {0,1,1,0,0,0,0},  //1
    {1,1,0,1,1,0,1},  //2
    {1,1,1,1,0,0,1},  //3
    {0,1,1,0,0,1,1},  //4
    {1,0,1,1,0,1,1},  //5
    {1,0,1,1,1,1,1},  //6
    {1,1,1,0,0,1,0},  //7
    {1,1,1,1,1,1,1},  //8
    {1,1,1,0,0,1,1},  //9
    {1,1,1,0,1,1,1},  //A
    {0,0,1,1,1,1,1},  //B
    {0,0,0,1,1,0,1},  //C
    {0,1,1,1,1,0,1},  //D
    {1,0,0,1,1,1,1},  //E
    {1,0,0,0,1,1,1}   //F
  };

void setup()
{
  int i;
  for (i = 0; i < 4; i++)
    pinMode(A + i, OUTPUT);
  pinMode(13, INPUT);  //SW
  pinMode(A0, OUTPUT);  //LED1
  pinMode(A1, OUTPUT);  //LED2
  for(i=0; i<7; i++)
  pinMode(pin+i, OUTPUT);
}

void CW(int myDelay)
{
  int i, j, k;

  for (i = 0; i < 50; i++)
  {
    for (j = 0; j < 4; j++)
    {
      for (k = 0; k < 4; k++)
        digitalWrite(A+k, step_table[j][k]);
      delay(myDelay);
    }
  }
}

void CCW(int myDelay1)
{
  int i, j, k;

  for (i = 0; i < 50; i++)
  {
    for (j = 0; j < 4; j++)
    {
      for (k = 0; k < 4; k++)
        digitalWrite(A+k, step_table[3-j][k]);
      delay(myDelay1);
    }
  }
}

void fnd(int num)
{
  int i,j;
  j = num;
  for(i=0; i<7; i++)
  digitalWrite(pin+i, table[j][i]);
 }

void loop()
{
  int SW = digitalRead(13);
  int i,j;

  if (SW != preSW)
  {
    if (SW == 1)
    {
      fnd(0);
      STATUS++;
      STATUS = STATUS % 2;

      if (STATUS == 1)
      {
        digitalWrite(A1, 0);
        digitalWrite(A0, 1);
        for(i=0; i<6; i++){
          CW(10);
          fnd(i+1);
        }

      }
      else if (STATUS == 0)
      {
        digitalWrite(A0, 0);
        digitalWrite(A1, 1);
        for(j=0; j<4; j++){
          CCW(20);
          fnd(j+1);
        }

      }
    }
    preSW = SW;
  }
}

좌표기억운전

1. 조그운전으로 기억한 위치데이터를 선입선출로 운전하기
- FIWRP의 경우 워드데이터이고, 좌표는 더블워드이므로 주의
- 아래예제는 데이터 한번출력후 소멸
- #D나 GMOV등으로 데이터를 보관하는 방법을 강구해야함

2. 조그운전으로 X축 현재위치를 바꾸고, X축 기동운전으로 동작
- #D는 D디바이스를 다루므로 직접적으로 K영역의 디바이스 주소를 지정할 수 없다
- 축파라미터와 비교후 PLC읽기로 읽어오면 파라미터 정보가 변경된 것을 확인가능
- X축 스텝 1번주소 K530에서 +10씩 증가(2번주소: K540...)

공압실린더 단속_연속제어

배열이용 CW,CCW함수로 제어

int A = 8;
int preSW = 0;
int STATUS = 0;
int step_table[4][4] = {
  {1, 0, 0, 1}, {1, 1, 0, 0}, {0, 1, 1, 0}, {0, 0, 1, 1}
};

void setup()
{
  int i;
  for (i = 0; i < 4; i++)
    pinMode(A + i, OUTPUT);
  pinMode(6, INPUT);  //SW1
  pinMode(7, INPUT);  //SW2
  pinMode(12, OUTPUT);  //LED1
  pinMode(13, OUTPUT);  //LED2
}

void CW(int rota, int myDelay)
{
  int i, j, k;

  for (i = 0; i < 50 * rota; i++)
  {
    for (j = 0; j < 4; j++)
    {
      for (k = 0; k < 4; k++)
        digitalWrite(A+k, step_table[j][k]);
      delay(myDelay);
    }
  }
}

void CCW(int rota1, int myDelay1)
{
  int i, j, k;

  for (i = 0; i < 50 * rota1; i++)
  {
    for (j = 0; j < 4; j++)
    {
      for (k = 0; k < 4; k++)
        digitalWrite(A+k, step_table[3-j][k]);
      delay(myDelay1);
    }
  }
}

void loop()
{
  int SW1 = digitalRead(6);

  if (SW1 != preSW)
  {
    if (SW1 == 1)
    {
      STATUS++;
      STATUS = STATUS % 2;

      if (STATUS == 1)
      {
        digitalWrite(12, 1);
        CW(3, 10);
        digitalWrite(12, 0);
      }
      else if (STATUS == 0)
      {
        digitalWrite(13, 1);
        CCW(2, 20);
        digitalWrite(13, 0);
      }
    }
    preSW = SW1;
  }
}

간접운전과 M코드

급탕 온수탱크시스템

Sub 순환auto()

while 1

a1 = GetTagVal("순환1")
a2 = GetTagVal("순환2")
a3 = GetTagVal("순환자동")


if a3 = 1 then

SetTagVal "순환1",1
SetTagVal "순환2",0
Sleep(5000)

SetTagVal "순환2",1
SetTagVal "순환1",0
Sleep(5000)

end if

Wend

End Sub

//////////////////////////////

Sub 대류auto()

while 1

a1 = GetTagVal("대류1")

a2 = GetTagVal("대류2")

a3 = GetTagVal("대류자동")

if a3 = 1 then

SetTagVal "대류1",1

SetTagVal "대류2",0

Sleep(4000)

SetTagVal "대류2",1

SetTagVal "대류1",0

Sleep(4000)

end if

Wend

End Sub

//////////////////////////////////

Sub 증기auto()

bu7 = GetTagVal("증기자동")

aa2 = GetTagVal("탱크온도")

aa4 = GetTagVal("급탕")

while bu7=1

a = aa4-aa2

if a>5 then

b=100

elseif a<-5 then

b=0

else

b=(a+5)*10

end if

SetTagVal "증기밸브",b

Sleep(100)

bu7 = GetTagVal("증기자동")

aa2 = GetTagVal("탱크온도")

aa4 = GetTagVal("급탕")

wend

if bu7=0 then SetTagVal "증기밸브",0

End Sub

LS-선입선출

WordShift와 #D

아두이노로 Step-Motor 구동하기

//////////////Step-Motor구동


int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int myDelay = 100;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void loop()
{
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }

//////////////1상--1회전후 5초 Sleep

int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int myDelay = 10;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void loop()
{
  int i;

  for(i=0; i<50; i++){
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
  delay(5000);
  }


//////////////2상--1회전(CW)후 5초 Sleep

int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int myDelay = 50;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void loop()
{
  int i;

  for(i=0; i<50; i++){
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
  delay(5000);
  }



//////////////2상--CW,CCW 각1회전후 5초 Sleep

int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int myDelay = 20;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void loop()
{
  int i;

  for(i=0; i<50; i++){
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
  delay(5000);

  for(i=0; i<50; i++){
  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
  delay(5000);

  }


//////////////2상--CW 3회전 3초 Sleep, CCW 2회전 5초 Sleep

int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int myDelay = 10;   //100Hz
int myDelay1 = 20; //50Hz

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void loop()
{
  int i;

  for(i=0; i<150; i++){
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
  delay(3000);

  for(i=0; i<100; i++){
  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay1);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay1);
  }
  delay(5000);

  }


/////////////////////////CW,CCW 제어

int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  }

void CW(int rota, int myDelay)
{
  int i;

  for(i=0; i<50*rota; i++)
  {
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
}

void CCW(int rota1, int myDelay1)
{
  int j;

  for(j=0; j<50*rota1; j++)
  {
  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay1);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay1);
  }
}

void loop()
{
  CW(5,10);
  delay(3000);
  CCW(3,20);
  delay(5000);
  }



////////////////정역스위치로 CW,CCW 제어


int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  pinMode(6,INPUT);
  pinMode(7,INPUT);
  pinMode(12,OUTPUT);
  pinMode(13,OUTPUT);
  }

void CW(int rota, int myDelay) //정회전함수
{
  int i;

  for(i=0; i<50*rota; i++)
  {
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
}

void CCW(int rota1, int myDelay1) //역회전함수
{
  int j;

  for(j=0; j<50*rota1; j++)
  {
  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay1);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay1);
  }
}

void loop()
{
  int CWsw = digitalRead(6);
  int CCWsw = digitalRead(7);

  if (CWsw == 1)
  {
    digitalWrite(12,1);
    CW(4,10);         //정방향 4회전,100Hz
  }else{
    digitalWrite(12,0);
  }

  if (CCWsw == 1)
  {
    digitalWrite(13,1);
    CCW(3,20);        //역방향 3회전,50Hz
  }else{
    digitalWrite(13,0);
  }

  }



//////////////스위치 하나로 CW,CCW 제어



int A = 8;
int B = 9;
int A_NOT = 10;
int B_NOT = 11;
int preSW = 0;
int STATUS = 0;

void setup()
{
  pinMode(A,OUTPUT);
  pinMode(B,OUTPUT);
  pinMode(A_NOT,OUTPUT);
  pinMode(B_NOT,OUTPUT);
  pinMode(6,INPUT);
  pinMode(7,INPUT);
  pinMode(12,OUTPUT);
  pinMode(13,OUTPUT);
  }

void CW(int rota, int myDelay)
{
  int i;

  for(i=0; i<50*rota; i++)
  {
  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay);

  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay);
  }
}

void CCW(int rota1, int myDelay1)
{
  int j;

  for(j=0; j<50*rota1; j++)
  {
  digitalWrite(A,0);
  digitalWrite(B,0);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,1);
  delay(myDelay1);

  digitalWrite(A,0);
  digitalWrite(B,1);
  digitalWrite(A_NOT,1);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,1);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,0);
  delay(myDelay1);

  digitalWrite(A,1);
  digitalWrite(B,0);
  digitalWrite(A_NOT,0);
  digitalWrite(B_NOT,1);
  delay(myDelay1);
  }
}

void loop()
{
  int SW1 = digitalRead(6);


  if (SW1 != preSW)
  {
    if (SW1 == 1)
    {
      STATUS++;
      STATUS = STATUS % 2;

      if (STATUS ==1)
      {
        digitalWrite(12,1);
        CW(3,10);
        digitalWrite(12,0);
       }
       else if (STATUS == 0)
       {
        digitalWrite(13,1);
        CCW(2,20);
        digitalWrite(13,0);
      }
    }
      preSW = SW1;
  }

  }

StepMotor위치결정

선입선출..FIFW, FIFR

예약시간_OnOff동작, BSFT(비트이동)

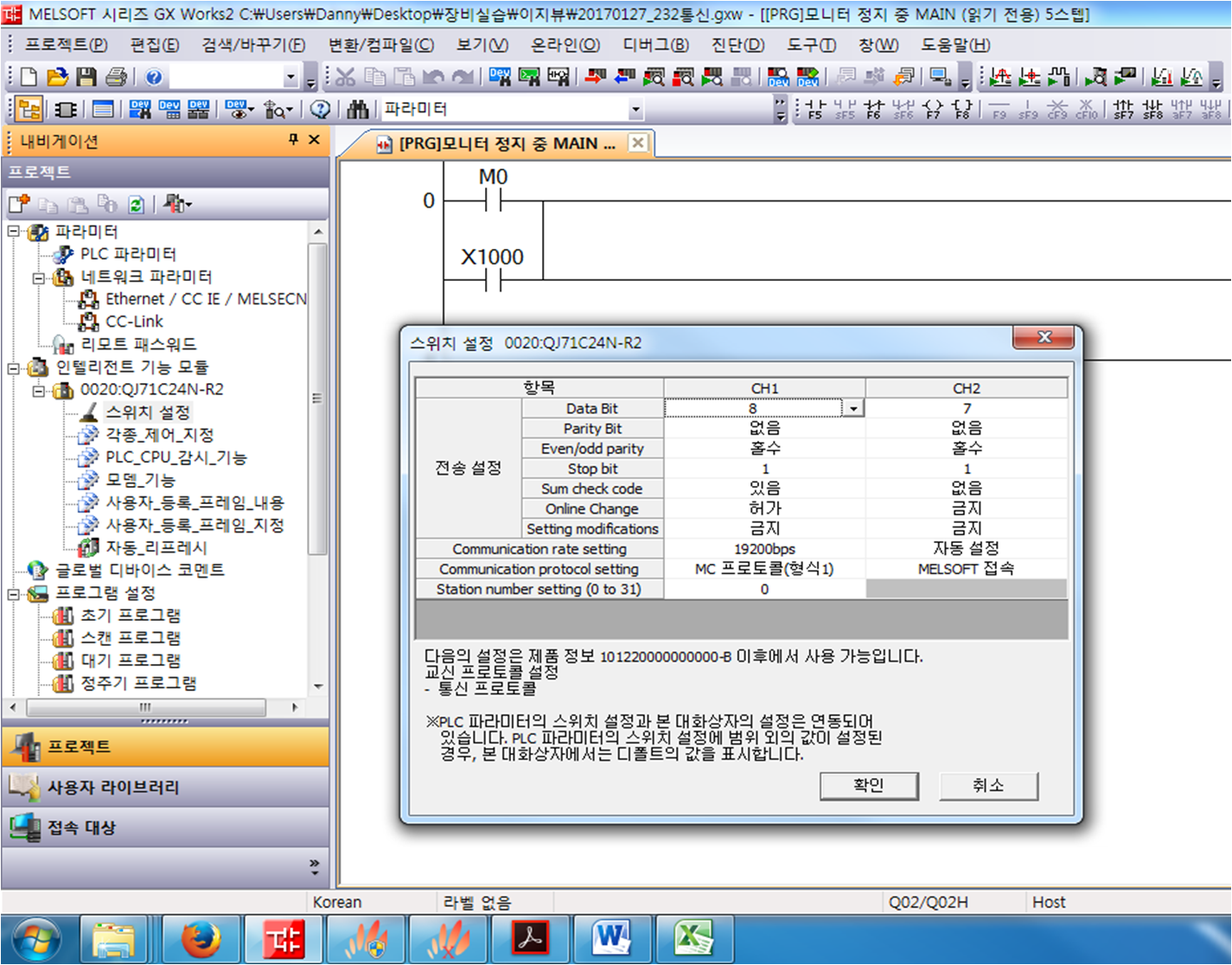

미쯔비시PLC_사이먼PC_232연결

1. 미쯔비시(PLC)와 사이먼(PC)측을 연결할 9핀 커넥터를 제작한다.

2. 파라메타를 설정한다.

3. 스위치설정을 맞춘다.

4. IO디바이스종류에서 MITSUBISHI MELSEC Computer Link(AJ71C24)를 선택하고
스테이션,통신블럭,통신포트등을 맞춘다.

5. 태그를 작성한다.

4개의 FND display

/////////4개의 FND display


int a[4] = {10,11,12,13}; //FND Control PIN

int fnd_a = 2; //FND의 a핀에 대한 포트값

int table[4][7] = { //FND출력값 테이블
  {0,1,1,0,1,1,1},  //H //2,3,4,5,6,7,8핀
  {1,0,0,1,1,1,1},  //E
  {0,0,0,1,1,1,0},  //L
  {1,1,0,0,1,1,1},  //P
  };

void setup()
{
  int i,j;

  for(i=0; i<7; i++) //FND a핀부터 g핀까지 포트설정
    pinMode(fnd_a+i, OUTPUT);

  for(i=0; j<4; j++) //FND Control PIN
    pinMode(a[j], OUTPUT);

  }

void loop()
  {
   int i,j,k=0;

   for(j=0; j<4; j++){

    for(i=0; i<7; i++){

      digitalWrite(fnd_a+i, table[j][i]); //H,E,L,P순환
      digitalWrite(a[k], LOW); //a[]배열순환
      }

      delay(5);

      digitalWrite(a[k], HIGH);
      k++;
      k = k % 4;
    }

  }



////////4자리숫자값을 4개의 FND에 각각표시하기



int a[4] = {10,11,12,13};
int fnd_a = 2;
int buffer[4] = {0};
int analogValue;
unsigned char table[10][7] = {
    {1,1,1,1,1,1,0},  //0
    {0,1,1,0,0,0,0},  //1
    {1,1,0,1,1,0,1},  //2
    {1,1,1,1,0,0,1},  //3
    {0,1,1,0,0,1,1},  //4
    {1,0,1,1,0,1,1},  //5
    {1,0,1,1,1,1,1},  //6
    {1,1,1,0,0,1,0},  //7
    {1,1,1,1,1,1,1},  //8
    {1,1,1,0,0,1,1}   //9
  };

void setup()
{
  Serial.begin(9600);

  int i,j;

  for(i=fnd_a; i<fnd_a+7; i++)    //FND a핀부터 g핀까지 포트설정
    pinMode(i, OUTPUT);

  for(j=0; j<4; j++)    //FND Control PIN
    pinMode(a[j], OUTPUT);
  }

  void fnd(int STATUS)
{
  int j;
  switch(STATUS){
    case 0: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[0][j]); break;
    case 1: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[1][j]); break;
    case 2: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[2][j]); break;
    case 3: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[3][j]); break;
    case 4: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[4][j]); break;
    case 5: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[5][j]); break;
    case 6: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[6][j]); break;
    case 7: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[7][j]); break;
    case 8: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[8][j]); break;
    case 9: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[9][j]); break;
    }
 }

void loop()
  {
    int i,k = 0;
    int STATUS;
    analogValue = analogRead(A0);
    Serial.println(analogValue);

    buffer[3] = analogValue/1000;
    buffer[2] = (analogValue%1000)/100;
    buffer[1] = (analogValue%100)/10;
    buffer[0] = analogValue%10;

    for(i=0; i<4; i++){
      STATUS = buffer[3-i];
      fnd(STATUS);
      digitalWrite(a[k],LOW);
      delay(5);
      digitalWrite(a[k],HIGH);
      k++;
      k=k % 4;
      }
    }



//////////블루투스숫자입력-FND출력


#include <SoftwareSerial.h>

SoftwareSerial BTSerial(2,3);

int fnd_a = 5;

unsigned char table[9][7] = {

    {0,1,1,0,0,0,0},  //1
    {1,1,0,1,1,0,1},  //2
    {1,1,1,1,0,0,1},  //3
    {0,1,1,0,0,1,1},  //4
    {1,0,1,1,0,1,1},  //5
    {1,0,1,1,1,1,1},  //6
    {1,1,1,0,0,1,0},  //7
    {1,1,1,1,1,1,1},  //8
    {1,1,1,0,0,1,1}   //9
  };

void setup()
{
  BTSerial.begin(9600);
 // Serial.begin(9600);

  int i,j;

  for(i=fnd_a; i<fnd_a+7; i++)    //FND a핀부터 g핀까지 포트설정
    pinMode(i, OUTPUT);

  }

void fnd(int STATUS)
{
  int j;
  switch(STATUS){
    case 1: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[0][j]); break;
    case 2: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[1][j]); break;
    case 3: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[2][j]); break;
    case 4: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[3][j]); break;
    case 5: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[4][j]); break;
    case 6: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[5][j]); break;
    case 7: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[6][j]); break;
    case 8: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[7][j]); break;
    case 9: for(j=0; j<7; j++) digitalWrite(fnd_a+j, table[8][j]); break;
    }
 }

void loop()
  {
    int STATUS,ch;

    if(BTSerial.available())
    {
      STATUS = BTSerial.read();
    //  Serial.println(STATUS);
      ch=(STATUS - '0');
    //  Serial.println(ch);
      fnd(ch);
      delay(10);
      }
  }

위치결정테스트

Bluetooth 연결테스트

////////////블루투스 통신읽기


#include <SoftwareSerial.h>

SoftwareSerial BTSerial(2,3);
int analog0;

void setup()
{
//  Serial.begin(9600);
  BTSerial.begin(9600);

  }

void loop()
  {
    analog0 = analogRead(A0);
    BTSerial.print("poten#: ");
    BTSerial.println(analog0);
//    Serial.println(analog0);

    delay(500);
    }


/////////////블루투스 설정변경

#include <SoftwareSerial.h>

SoftwareSerial BTSerial(2,3);

void setup()
{
  Serial.begin(9600);
  BTSerial.begin(9600);
  }

void loop()
{
  if (BTSerial.available()) {
    Serial.write(BTSerial.read()); }

  if (Serial.available()) {
    BTSerial.write(Serial.read()); }
  }



////////////시리얼 입출력


int inData;
int LED1 = 8;

void setup()
{
  Serial.begin(9600);
  pinMode(LED1,OUTPUT);
  }

void loop()
  {
    if(Serial.available()>0)
    {
      inData = Serial.read();
      if (inData == 'A')
        digitalWrite(LED1,HIGH);
      if (inData == 'D')
        digitalWrite(LED1,LOW);

       delay(1000);
      }
  }


////////////////블루투스 입출력


#include <SoftwareSerial.h>

SoftwareSerial BTSerial(2,3);

int inData;
int LED1 = 8;

void setup()
{
  BTSerial.begin(9600);
  pinMode(LED1,OUTPUT);
  }

void loop()
  {
    if(BTSerial.available())
    {
      inData = BTSerial.read();
      if (inData == 'A')
        digitalWrite(LED1,HIGH);
      if (inData == 'D')
        digitalWrite(LED1,LOW);

       delay(1000);
      }
  }


//////////////빛센서cds 출력


#include <SoftwareSerial.h>

SoftwareSerial BTSerial(2,3);



void setup()
{
  BTSerial.begin(9600);

  }

void loop()
  {
   int cds = analogRead(A0);
   BTSerial.print("Cds: ");
   BTSerial.println(cds);

   delay(500);
  }


///////////////'0'문자형테스트


int inData;
int cha;
int LED1 = 8;

void setup()
{
  Serial.begin(9600);
  pinMode(LED1,OUTPUT);
  }

void loop()
  {
    if(Serial.available())
    {
      inData = Serial.read();
      cha = (inData-'0');
      if (cha == 1)
        digitalWrite(LED1,HIGH);
      if (cha == 0)
        digitalWrite(LED1,LOW);

       delay(1000);
      }
  }
